Defining the Default Recipe

MERLIC allows you to define a specific recipe as default for MERLIC RTE, the process integration mode of MERLIC. If a default recipe has been defined, MERLIC automatically loads this recipe when MERLIC RTE is started.

In case of digital I/O devices and cameras with GenICam compliant digital I/O channels, it is mandatory to select a default recipe.

You can define the default recipe in the "Recipes" tab of the MERLIC RTE Setup as follows:

  1. Open the MERLIC RTE Setup.
  2. Go to the " Recipes" tab.

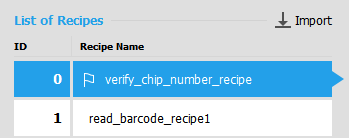

  3. Select the recipe that you want to set as default from the recipe list.
  4. Use the slider "Default" on the bottom of the recipe information to set the recipe as default.

  5. The recipe is now set as default and marked with the icon .
