easyTouch Button

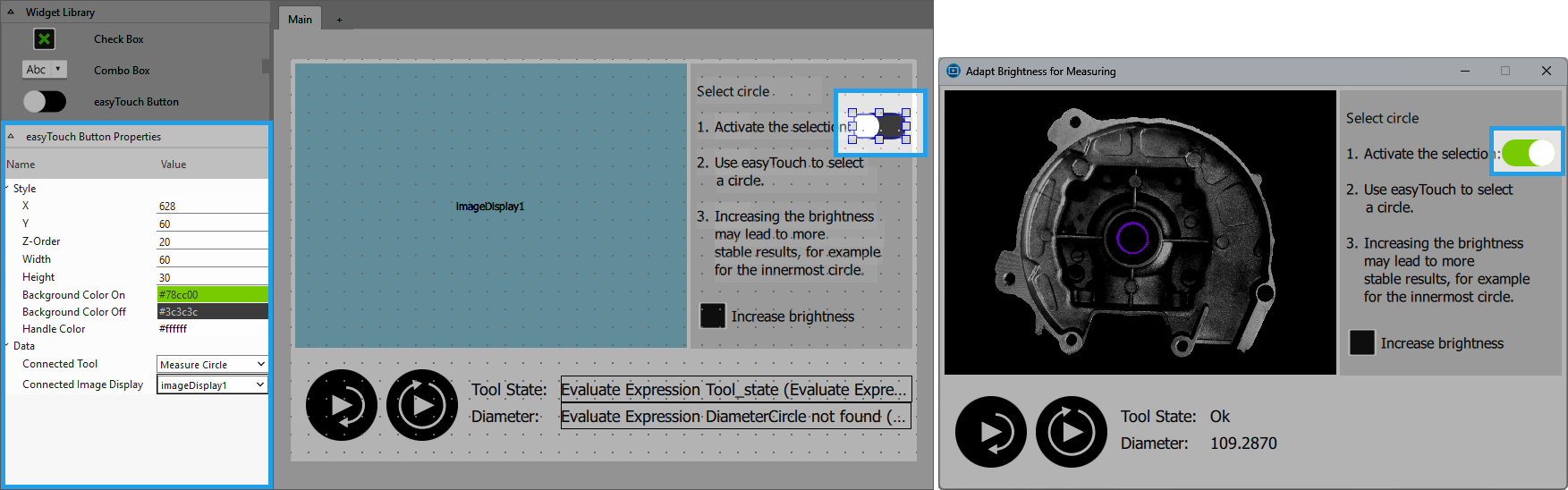

The "easyTouch Button" allows you to link the image in the "Image Display" widget to the easyTouch functionality of the connected tool. You can activate and deactivate the easyTouch functionality by sliding the handle of the button.
When easyTouch is active, ROIs can not be edited, even if you defined them to be editable. The corresponding option dialog will not be shown anymore.
To get more information about how to use easyTouch, please refer to the chapter Adjusting Parameters.
Style
X, Y:
Adjust the position of the widget by typing the desired coordinate values of the upper left corner into the input field.
Z-Order:
Adjust the z-order of the widget by typing the desired value into the input field. This defines which widget is displayed on top if several widgets are positioned at the same place, for example, if widget "A" has "Z-Order" "0" and widget "B" has "Z-Order" "1", widget "B" will be displayed on top of widget "A".
Width:
Adjust the width of the widget. The width is defined in pixels and set to 80 by default. To change the value, type the new width into the input field. It must be at least 40 and not be bigger than 2147483647.
Height:
Adjust the height of the widget. The height is defined in pixels and set to 40 by default. To change the value, type the new height into the input field. It must be at least 20 and not be bigger than 2147483647.
Background Color On:
Adjust the background color of the widget for the case that easyTouch is activated. To change the color, click into the color field and select a new color in the color selection dialog or enter the color code manually.
Background Color Off:
Adjust the background color of the widget for the case that easyTouch is deactivated. To change the color, click into the color field and select a new color in the color selection dialog or enter the color code manually.
Handle Color:
Adjust the color of the button handle. To change the color, click into the color field and select a new color in the color selection dialog or enter the color code manually.
Data
If you create a tool group in your MVApp, make sure to connect your tool parameters and results in the Frontend Designer before grouping. For more information, see Connecting to Tools in a Group in Adjusting Your Widgets.
Connected Tool:
Connect to a tool from your MERLIC Vision App by selecting the desired tool from the drop-down menu. You can only select tools that are used in your MERLIC Vision App. At the property "Connected Image Display" you can then select the image output in which the easyTouch functionality is applied in case the functionality is activated.
Connected Camera View:
Select the "Image Display" widget that represents the image in which you want to use the easyTouch functionality. The list shows only the "Image Display" widgets that have already been inserted to the Frontend design.
When the button is toggled, the selected image in the "Image Display" widget will display the visual easyTouch output and accept user interactions .
Application Example
This widget is used in the following MERLIC Vision App examples:
- adapt_brightness_for_measuring.mvapp
