Comprehensive Collection of Filters

Image Filter In MVTec Software

MVTec software products provide a comprehensive collection of image filters for all image preprocessing tasks. These filters have always been part of MVTec HALCON and are used by customers worldwide in a wide range of applications.

Do you need help with an application?

Get a free evaluation

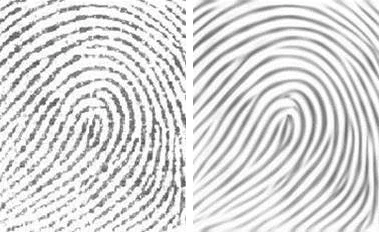

Representation of a Single Image Filter in HALCON.
With the call of a single filter there is no need to write complex image analysis.

MVTec's powerful filtering methods support Regions of Interest (ROI) and automatic operator parallelization (AOP).

This significantly increases efficiency and performance by limiting operations to relevant pixels and optimizing the use of modern multi-core processors.

USING IMAGE FILTERS

Typical Application Areas

Image Enhancement

Contrast improvement, illumination correction, scaling, histogram equalization.

Smoothing

Edge-preserving and advanced smoothing, Gaussian smoothing, binomial filter, mean filter, rank filters (median, separable median, weighted median, etc.), midrange filter, sigma filter, trimmed mean, salt-and-pepper noise reduction, recursive smoothing filters.

Edge Filters

Canny, Deriche, Lanser, Shen, Frei, Kirsch, Roberts, Prewitt, Robinson, Sobel, Laplace, Difference of Gaussians (DoG), Gaussian derivatives, edge closing.

Point Filters (Interest Points)

Förstner, Harris, Lepetit, and Sojka operators with subpixel accuracy.

Inpainting

Restoration of missing image information.

Texture Analysis

Laws' filter (3x3, 5x5, 7x7), deviation, entropy.

Arithmetic Operations

Scaling, addition, subtraction, multiplication, absolute value, maximum, minimum, inversion, square root, trigonometric functions, logarithm, exponential function, exponentiation.

Color Space Transformations

CIELAB, HSV, HSI, YIQ, YUV, CIEXYZ, HLS, IHS.

Fourier Transformation

Fast FFT, Gaussian, mean, derivative, and Gabor filters, bandpass, high-pass, and low-pass filters, energy, phase, and power analysis.

Hough Transformation

Line and circle detection.

Other Filters

Custom filters, point filters, grayscale skeleton, principal component analysis (PCA), topographic sketch, Gaussian pyramid, type conversion.

FILTERING APPLICATIONS IN PRACTICE

Our Success Stories

MVTec HALCON product icon
X-ray film dosimeter badges and opened cassettes with different metal filters inspected by a machine vision system.
Vision System Inspects X-ray Dosimeter Badges – Helmholtz-Zentrum
Helmholtz-Zentrum Munich uses HALCON to fully automate the evaluation of approximately 120,000 X-ray dosimeter films per month. Optical density, film type, and dosimeter numbers are precisely captured, and radiation sources are analyzed. The system s…
Show full Story
HALCON
Medical Supplies & Pharmaceutical
Calibration
Filtering
Matching
Measuring
OCR
MVTec HALCON product icon
Support of Intelligent Rooms by Image Processing
In recent years, rooms with intelligence are studied. This kind of rooms is becoming important not only for medical or welfare use, but also at offices or ordinary houses. Obviously, the man-machine interface to communicate human intention is a subst…
Show full Story
HALCON
Education, Research & Science
Classification
Filtering
MVTec HALCON product icon
HERON - Middleware for Image Retrieval Using Graphical Features Extracted by HALCON
The interdisciplinary HERON project aims to find images in digital libraries or large archives without detailed domain knowledge. Initially applied to heraldry, the methods can also be used in medical imaging or trademark collections. HERON uses inno…
Show full Story
HALCON
Education, Research & Science
Classification
Filtering
Matching
MVTec HALCON product icon
Margarine packages transported on a conveyor system during food production.
Machine vision validates printed text – PHILRO Industrial Ltd.
PHILRO Industrial Ltd. uses a vision-based inspection system with MVTec HALCON to detect printing errors on margarine packaging and automatically remove defective products. Basler cameras and sensors check text lines for readability and completeness.
Show full Story
HALCON
Food & Beverage
Alignment
Blob Analysis
Filtering
Matching
Morphology
OCR
MVTec HALCON product icon
User interface of Vision Q.400 inspection software showing industrial image processing, measurement, and analysis based on HALCON algorithms.
Vision Q.400 – The Universal Inspection Software for Industrial Image Processing
Vision Q.400 by Q.VITEC enables rapid development of high-performance inspection processes without programming experience. Built on MVTec HALCON, the software offers an intuitive interface and is ideal for OEM systems and inspection solutions.
Show full Story
HALCON
Machinery
3D Calibration
Filtering
Matching
Measuring
Morphology
OCR
MVTec HALCON product icon
Machine vision camera inspecting silicon wafers for solar cells as part of a photovoltaic quality inspection system.
Sunny Prospects – Eckelmann
ECKELMANN uses high-resolution Gigabit Ethernet cameras and HALCON to inspect solar-cell wafers with an accuracy of 50 µm and a throughput of approx. 0.8 s per wafer – up to 3,600 wafers per hour.
Show full Story
HALCON
Energy
Classification
Filtering
Measuring
MVTec HALCON product icon
Circuit Breakers – Sensata
Sensata Technologies uses HALCON to precisely determine the "snap point" of bimetallic thermal protectors. A GigE camera captures the movement of the bimetal disks in a special oven. HALCON algorithms filter the images, locate the disks, and detect t…
Show full Story
HALCON
Electric Components
Glass, Metal, Paper, Foil & Printing
Blob Analysis
Filtering
Matching
Measuring
MVTec HALCON product icon
Robotic apple picker mounted on a tractor using machine vision for automated fruit harvesting.
Vision System Simplifies Robotic Fruit Picking – ACRO Institute
The ACRO Institute developed a mobile apple-picking robot equipped with a camera inside the gripper and MVTec HALCON image processing software. The robot identifies ripe apples, calculates their position, and performs precise gripping movements. This…
Show full Story
HALCON
Robotics
Agriculture
Food & Beverage
Packaging & Logistics
3D Vision
Classification
Filtering
Matching
Measuring
MVTec HALCON product icon
PlayStation 2 controller used as an input device reference in the inspection system context.
The Industrial Inspection System for Board Implementation VARIR, Developed by Sony
Sony EMCS Corporation Kohda TEC is the leading manufacturer of electronic boards inspection systems in the world, and part of Sony, Japan. With products becoming more and more compact and lightweight the production process of electronic circuit boar…
Show full Story
HALCON
Robotics
Blob Analysis
Filtering
Matching
Measuring
COMPREHENSIVE PRODUCT PORTFOLIO
Learn More About Our Products

MVTec offers three core products that cover the full range of machine vision workflows. Use HALCON to develop advanced, custom applications, MERLIC to build solutions quickly without programming, and the Deep Learning Tool to label and evaluate training data efficiently.
