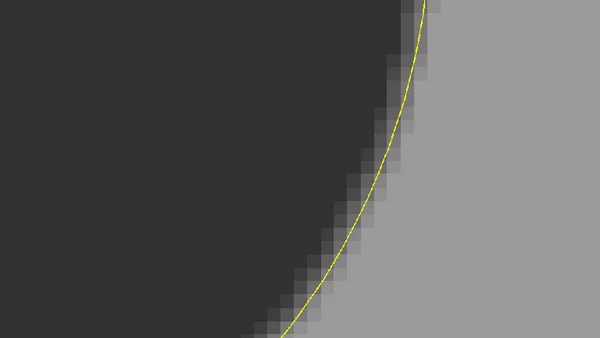

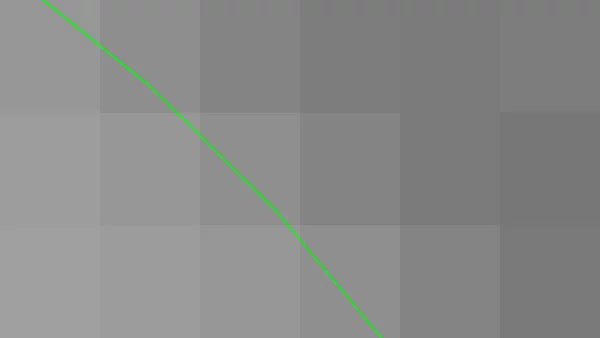

MVTec software offers powerful methods for subpixel-accurate edge detection and line extraction. Even the finest structures are captured with maximum precision.
Facet model and Steger line detectors with an accuracy of up to 1/50 pixel.
Subpixel color edge and line detectors.
Subpixel thresholding methods.
With deep learning-based edge extraction, this technology has been further enhanced for particularly challenging situations, such as low contrast or strong noise.
Transformations: affine and projective transformations
Segmentation and fitting of lines, circles, ellipses, and rectangles
Merging collinear contours
Set operations: union, intersection, difference
Creating standard shapes: circle, ellipse, line, rectangle
Feature Extraction
Area, center, orientation, circularity, compactness
Contour length, convexity, ellipse axes
Moments of any order, eccentricity
Envelopes: convex, circular, rectangular
Selecting contours based on shape features
Efficiency Through ROIs
Contours can be defined as regions of interest (ROIs). This ensures that subsequent operators consider only relevant pixels.
As a result, efficiency increases, computational effort is reduced, and overall performance improves.
