Reliable & precise object detection

Alignment & Matching

MVTec software reliably and precisely locates objects – with an accuracy of better than 1/20th of a pixel, even in the case of partial occlusion. This allows for determining object positions and aligning images for further processing steps.

Do you need support with a machine vision task?

Get a free application evaluation

EXCEPTIONALLY ROBUST

Correlation-based Matching

This technology is particularly robust against blurriness, edge deformation, rotation, and texture.

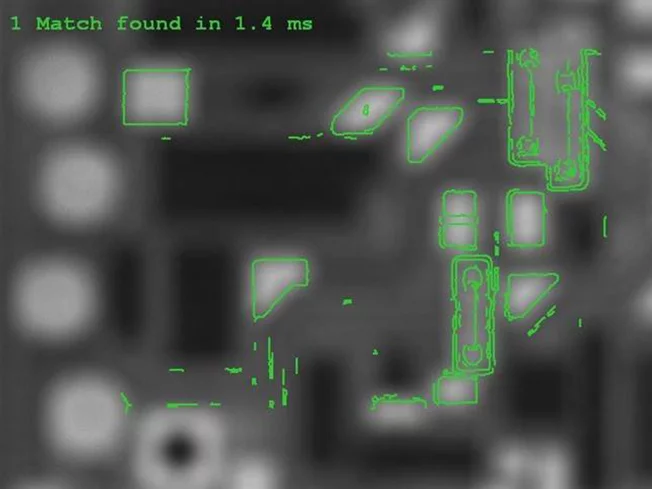

Objects are reliably found even in blurred images.

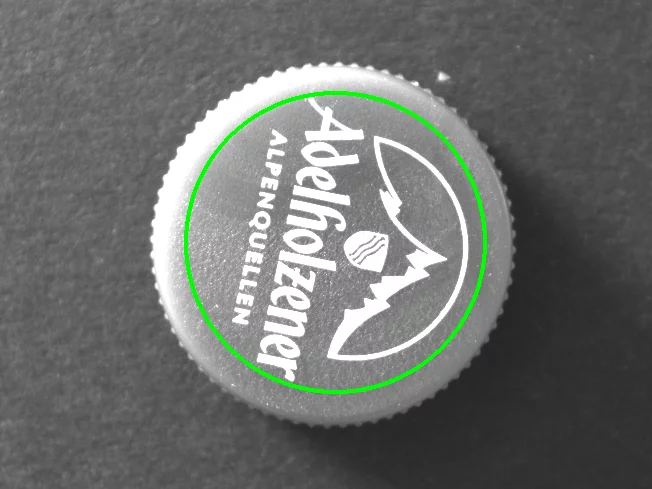

Correlation-based matching with MVTec HALCON.

Detection of a certain lettering on a bottle cap.

SUBPIXEL-ACCURATE AND REAL-TIME DETECTION

Shape-based Matching

The subpixel-accurate template-based matching detects objects in real-time – even with rotation, scaling, perspective distortion, local deformation, partial occlusion, or lighting variations. It supports 8- and 16-bit images, as well as color and multi-channel images. Objects can be trained using image templates or CAD data.

In the following tutorial videos, you will learn how to create various applications for template-based matching with our software:

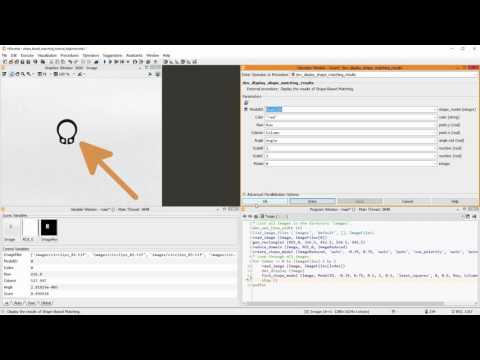

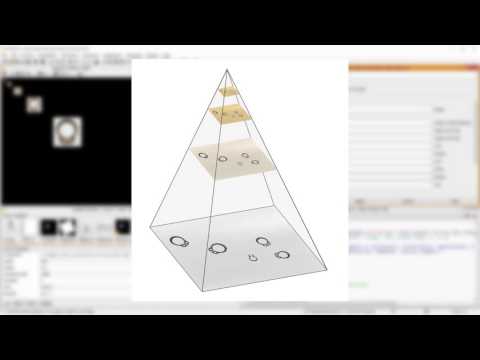

1 – Introduction

Please note: Once you watch the video, data will be transmitted to Youtube/Google. For more information, see Google Privacy.

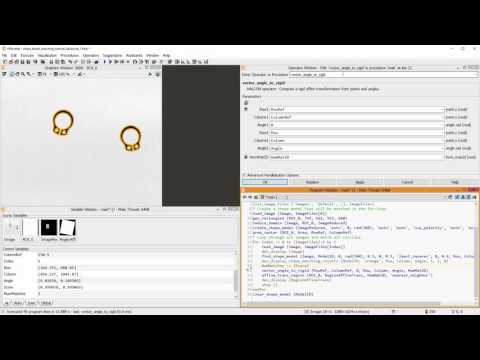

2 – Process the results

Please note: Once you watch the video, data will be transmitted to Youtube/Google. For more information, see Google Privacy.

3 – Speedup vs. robustness

Please note: Once you watch the video, data will be transmitted to Youtube/Google. For more information, see Google Privacy.

EXTREMELY FAST DETECTION

Descriptor-based Matching

For textured planar objects, MVTec software offers an extremely fast method that reliably locates objects even with arbitrary rotation or tilting.

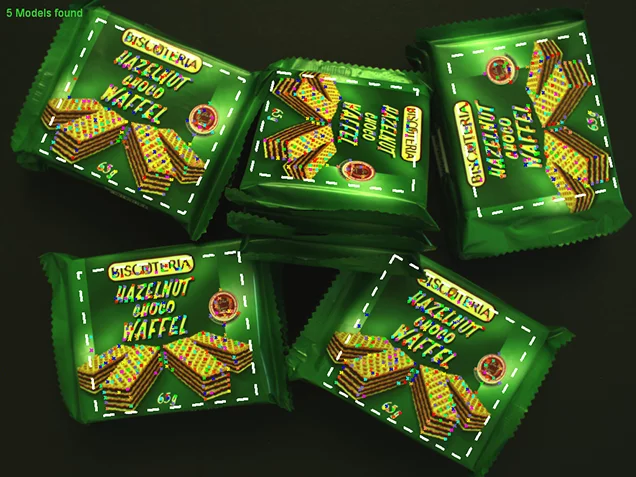

Descriptor-based matching detects planar objects extremely quickly.

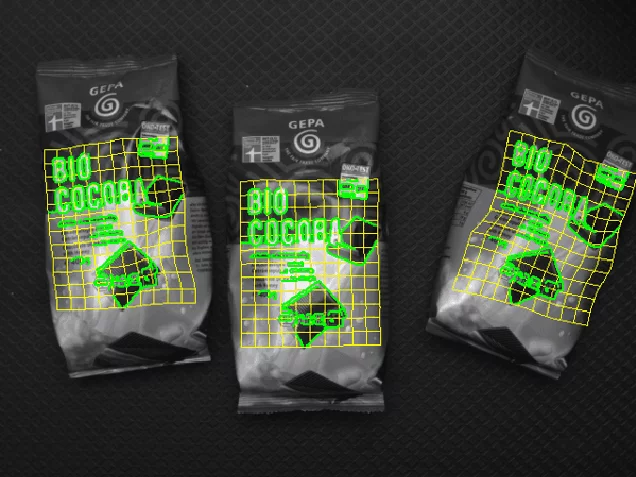

Locally deformable matching detects objects with deformed surfaces.

Component-based matching quickly and robustly detects composite objects with MVTec HALCON..

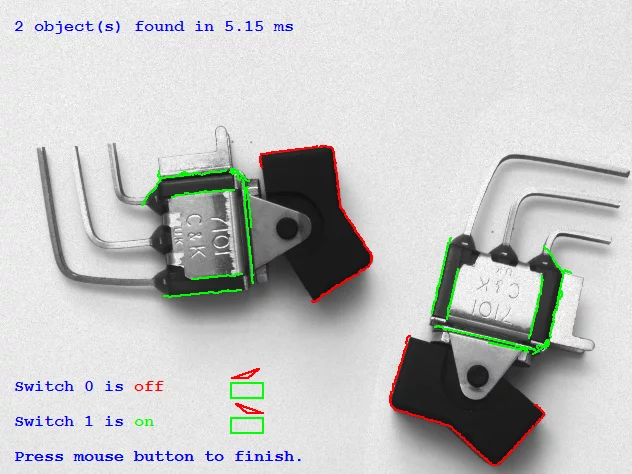

Component-based matching detects composite objects in a single step.

COMPREHENSIVE PRODUCT PORTFOLIO

Learn More About Our Products

MVTec offers three core products that cover the full range of machine vision workflows. Use HALCON to develop advanced, custom applications, MERLIC to build solutions quickly without programming, and the Deep Learning Tool to label and evaluate training data efficiently.

Go to Products

Free Application Evaluation

Submit the details of your machine vision task and get a proposed solution!

Get an evaluation

Shape-based 3D Matching

This technology detects arbitrarily arranged 3D objects with a single camera. Position and orientation are determined using CAD models, contours, or shape features such as circles and squares. Application areas include CAD-based localization and bin-picking with stereo methods.

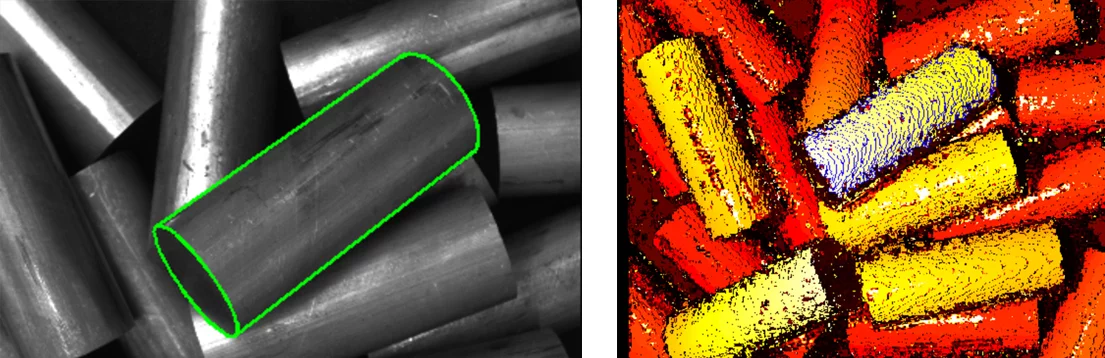

3D matching in combination with binocular stereo.

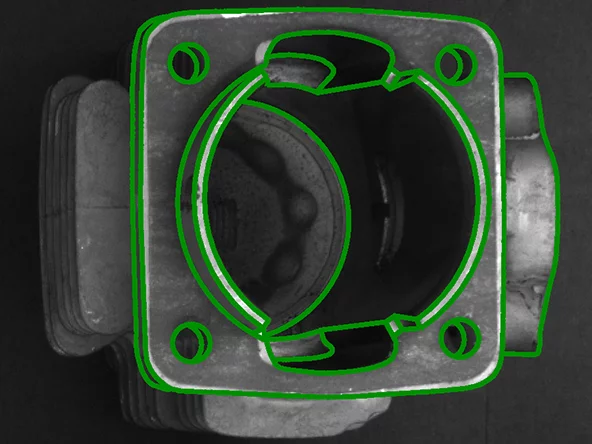

Localization of a known object with 3D matching.

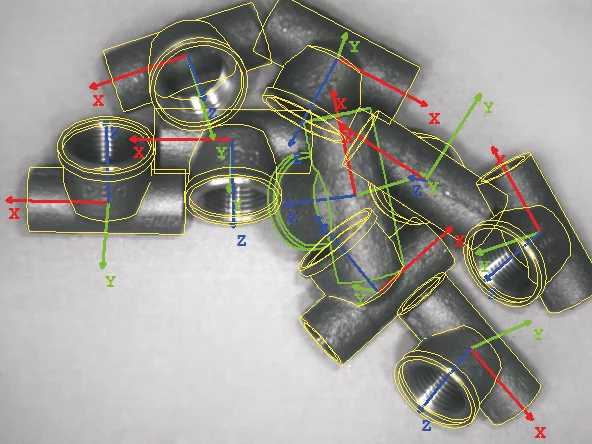

Surface-based 3D matching with multi-view stereo.

More about our 3D vision technologies

APPLICATIONS IN PRACTICE

Our success stories with matching technologies

Automatisierte Transport- und Inspektionsstation für pharmazeutische Ampullen mit Machine-Vision-System von Aspen.

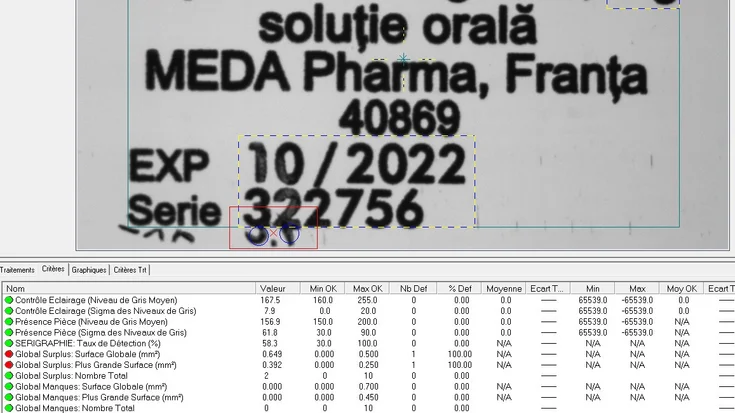

AI-powered machine vision automates quality inspection in the pharmaceutical industry

The pharmaceutical company Aspen is improving the quality inspection of filled ampoules with the MVTec HALCON machine vision software and the consulting and technical support services provided by MVTec. With deep learning methods, the company has sig…
